ASTM A193 B8 Fasteners

High Tensile Fasteners, ASTM A193 B8 Fasteners Manufacturers, ASTM A193 B8 Fasteners, ASTM A193 allen cap screw, ASTM A193 B8 Fasteners Importers.

ASTM A193 B8 Fasteners Manufacturers in Mumbai, ASTM A193 B8 Fasteners Suppliers in Mumbai, ASTM A193 B8 Fasteners Exporters in Mumbai, ASTM A193 B8 Fasteners Importers in Mumbai.

ASTM A193 B8 Fasteners Manufacturers in India, ASTM A193 B8 Fasteners Suppliers in India, ASTM A193 B8 Fasteners Exporters in India, ASTM A193 B8 Fasteners Importers in India.

ASTM A193 B8 Fasteners, ASTM A193 Allen Cap Screw, B8 Square Bolts, SS ASTM A193 Stud Bolt, High Tensile Fasteners, ASTM A193 B8 Washers, ASTM A193 B8 Threaded Rod Supplier & Exporter

Chhajed Steel and Alloys is one of the known producers of ASTM A193 B8 SS Fasteners, which are being made-up by utilizing the remarkable thought of the amalgams that are reasonable in the business. We offer the equal in divergent sorts, for example, ASTM A193 B8 Stainless Steel Hex Bolt and ASTM A193 B8 Stainless Steel Stud Bolt. These Fasteners are commonly utilized as a bit of Chemical holders, which breaker for Heat exchangers; transport; Nuts, screws, screws, and other related secures marine condition; Dyeing industry; Welded or Woven screens for mining; Water and quarrying filtration, and so on. Tempered Steel ASTM A193 B8 Fastenersis being utilized as an instrument to control the technique with procedure and the zero-imperfection produce is monitored by systems for the help of assessment and arranging machines.

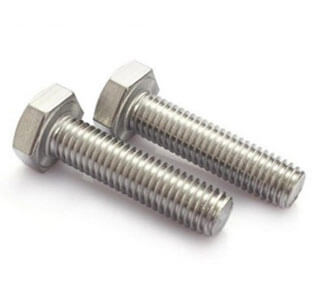

astm-a193-b8-fasteners

Displayed improvement thing is richly regarded in different mechanical uses in light of its immaculate wrap up. Our developed application-based creation and building systems offer you the assurance that every SS ASTM A193 B8 Fasteners is perfectly fit and made to its undertaking. Our leading body of bosses is related with making these fasten progressively reasonable and abstract. The equipment used as a piece of the improvement procedure of ASME SA 193 B8 Stainless Steel Fasteners are of the front line development and the essential rough material is gotten from the proven experts of the business. Our ASME SA 193 B8 SS Fasteners are unsurprising, as they are industrialized close by wanted to offer most extraordinary fulfillment to the socioeconomics. Buy Stainless Steel Fastenersat reasonable rates from us.

ASTM A193 B8 FASTENERS SPECIFICATION

Material
Specification
Standards
Size
Length

ASTM A193 B8 Fasteners



IS

BS

ASTM

DIN, ISO, JIS, GB, IS, BS, ASTM

M 02 to M 160

3 mm to 200 mm

ASTM A193 B8 FASTENERS CHEMICAL COMPOSITION

Element B7 B8 B8M
Carbon 0.37 - 0.49% 0.08% max 0.08% max
Manganese 0.65 - 1.10% 2.00% max 2.00% max
Phosphorus, max 0.035% 0.045% 0.045%
Sulfur, max 0.040% 0.030% 0.030%
Silicon 0.15 - 0.35% 1.00% max 1.00% max
Chromium 0.75 - 1.20% 18.0 - 20.0% 16.0 - 18.0%
Nickel 8.0 - 11.0% 10.0 - 14.0%
Molybdenum 0.15 - 0.25% 2.00 - 3.00%

ASTM A193 B8 FASTENERS MECHANICAL PROPERTIES

Grade Size Tensile ksi, min Yield, ksi, min Elong, %, min RA % min
B7 Up to 2-1/2 125 105 16 50
2-5/8 - 4 115 95 16 50
4-1/8 - 7 100 75 18 50
B8 Class 1 All 75 30 30 50
B8M Class 1 All 75 30 30 50
B8 Class 2 Up to 3/4 125 100 12 35
7/8 - 1 115 80 15 35
1-1/8 - 1-1/4 105 65 20 35
1-3/8 - 1-1/2 100 50 28 45
B8M Class 2 Up to 3/4 110 95 15 45
7/8 - 1 100 80 20 45
1-1/8 - 1-1/4 95 65 25 45
1-3/8 - 1-1/2 90 50 30 45

Other Types Of ASTM A193 B8 Fasteners

ASTM A193 B8 Fasteners SS ASTM A193 B8 Fasteners
Stainless Steel B8 Nuts ASTM A193 B8 Bolts Supplier
ASTM A193 B8 Washers Exporter B8 Stud Bolt
ASTM A193 B8 Socket Cap Screw ASTM A193 Bolts Manufacturer
B8 Stainless Steel Bolts ASTM A193 B8 Stud Bolt
ASTM A193 Coupler Nuts Exporter B8 spring washer Stockist
ASTM A193 Grade B8 Flat Washer ASTM A193 Grade B8 Countersunk Slotted Screw
ASTM A193 Double Ended Stud Grade B8 Tie Bar Exporter
ASTM A193 B8 Square Bolts Supplier Grade B8 Punched Washer Distributor
ASTM A193 Grade B8 Lock Nut Supplier B8 Coupler Nuts
Grade B8 Double Ended Stud ASTM A193 Grade B8 Self Locking Nuts Manufacturer
ISO Certified ASTM A193 B8 Head Bolts SS ASTM A193 Grade B8 Head Bolts
